Behringer – BDS-3 – Analog Drum Synthesizer – Notes

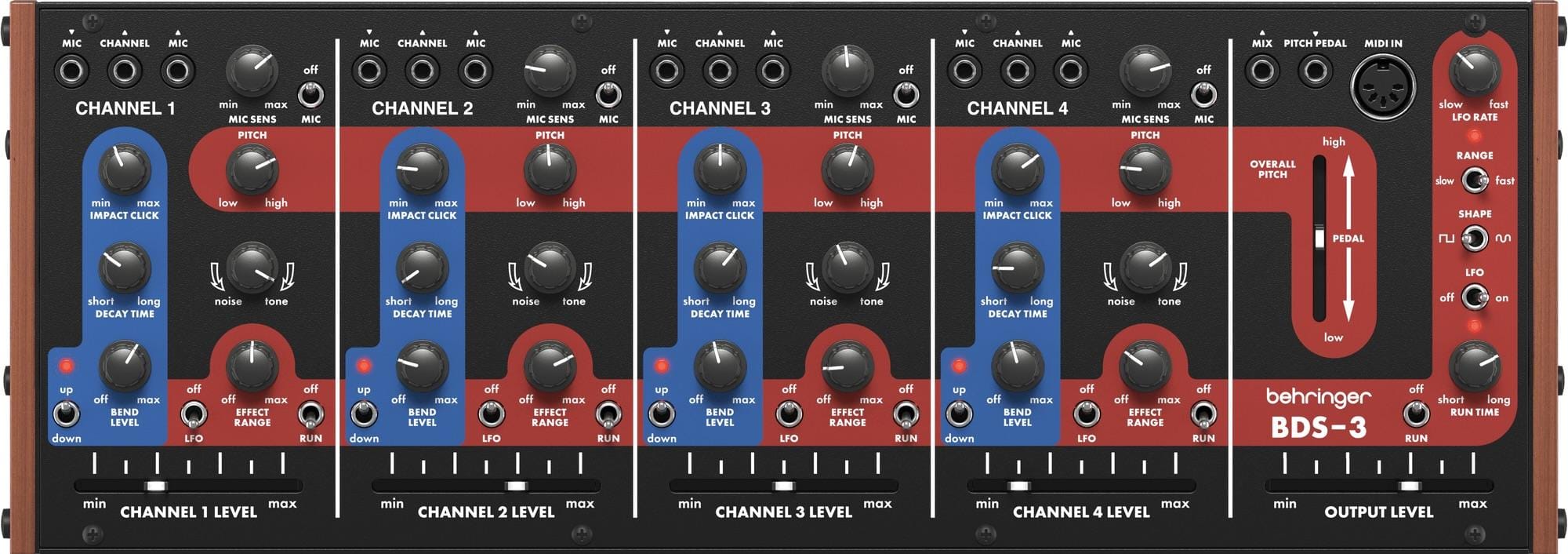

The Behringer BDS-3 is a modern analog recreation of the iconic Simmons SDS-3 drum synthesizer from the late 1970s, famous for its distinctive electronic percussion sounds in 80s music and new wave. This standalone/desktop module (with full Eurorack compatibility in 70 HP format) features four identical, fully independent analog drum channels plus a dedicated special effects channel, delivering punchy, synthetic toms, bass drums, snares, cymbals, bells, gongs, vibes, and beyond through self-oscillating diode ladder filters, white noise sources, pitch bend envelopes, and extensive controls. With MIDI In/Thru, USB, individual outs per channel, main mix out, and trigger inputs, it’s perfect for classic Simmons-style kits, experimental percussion, or integration into modular rigs as a powerful analog drum voice or voice expander.
Technical Specifications
| Item | Description |
|---|---|
| Type | Classic 4-Channel Analog Drum Synthesizer (inspired by Simmons SDS-3) with Special Effects Channel |
| Format | Standalone/Desktop + Eurorack-mountable (70 HP when modularized) |
| Dimensions (H × W × D) | Approx. 95 mm × 375 mm × 136 mm (3.74″ × 14.76″ × 5.35″) |
| Weight | Approx. 1.5 kg (3.3 lbs) |
| Power Supply | External 12 V DC adapter (included, 1000 mA) |
| Current Draw (Eurorack mode) | +12 V: 800 mA, –12 V: not specified (typically low), +5 V: 0 mA |
| Drum Channels (4 identical) | |
| Architecture | Self-oscillating diode ladder filter + white noise generator per channel |
| Controls per Channel | Impact Click level, Decay Envelope, Pitch Bend Envelope (with Up/Down direction switch), Pitch, Assignable Decay Kill, LFO/S&H integration options |
| Triggering | Individual Trigger inputs (3.5 mm TS or via MIDI), positive gate/trigger |
| Audio Outputs | 4 × individual channel outs (3.5 mm TS), Main Mix Out |
| Special Effects Channel | Dedicated channel for additional percussion/texture (bells, gongs, etc.); similar controls to drum channels |
| Modulation & Effects | Per-channel LFO, Sample & Hold, pitch bend envelopes for sweeps/pitch modulation |
| I/O | |
| MIDI | 5-pin MIDI In / Thru; Class Compliant USB (for MIDI & potential firmware) |
| Trigger Inputs | 4 × per channel + possibly shared |
| Pedal Inputs | Pitch Pedal, Decay Kill (for expressive control) |
| Audio Outputs | Individual per channel + Main stereo/mono mix out |
| Additional Features | Removable Eurorack panel for rack mounting; 57 total controls for deep sound shaping |
| Signal Flow | Trigger → envelope/pitch bend → filter/noise osc → output (individual or mix) |
Key Features & Signal Flow
- Four independent analog channels — Each recreates the SDS-3’s signature sound with diode ladder self-oscillation for resonant, punchy hits; tune for kicks, toms (with pitch sweeps), snares, cymbals, or metallic percussion.
- Special effects channel — Extra voice for bells, gongs, vibes, or experimental tones—expand your kit without extra modules.
- Pitch bend envelopes — Up/down sweeps per channel for classic Simmons “pitch drop” toms or rising hits; adjustable direction and amount.
- Impact click & decay controls — Shape attack transients and tail lengths for tight or ringing percussion.
- MIDI & trigger flexibility — Play via MIDI keyboard/sequencer (polyphonic potential across channels) or modular triggers; USB MIDI for DAW integration.
- Individual outputs — Route each channel to separate effects, mixers, or processing chains for multitrack recording or spatial effects.
- Eurorack integration — Mount in a 70 HP case for full modular use; patch triggers from sequencers, modulate parameters externally if CV accessible.
- Classic 70s/80s analog character — Raw, synthetic drum tones with warmth and grit—far from sample-based machines; infinite sound design for unique kits.
- Expressive controls — Pedal inputs for real-time pitch/decay manipulation; LFO/S&H for modulated chaos.
Resources
- Official Behringer product page: https://www.behringer.com/product.html?modelCode=0718-ACA
- Quick Start Guide / Manual (PDF): Available on Behringer downloads (search “BDS-3”)
- ModularGrid page: https://modulargrid.net/e/behringer-bds-3 (user ratings, discussions, and Eurorack integration notes)
- Retailer pages (Sweetwater, Thomann, Perfect Circuit, B&H Photo, Alto Music): Detailed specs, user reviews, demo videos, and sound clips
- Demo videos: Search YouTube for “Behringer BDS-3 demo” or “Behringer BDS-3 Simmons SDS-3 clone” (sound design examples, pattern jams, comparisons to original)
The Behringer BDS-3 revives the legendary Simmons analog drum sound in an affordable, versatile package—ideal for retro-inspired beats, experimental percussion, or adding raw analog punch to modular/DAW setups. A fun, powerful tool for anyone craving that 80s electronic drum vibe without hunting vintage gear. Highly recommended for drum synth enthusiasts!
