Behringer – 110 – VCO/VCF/VCA – Notes

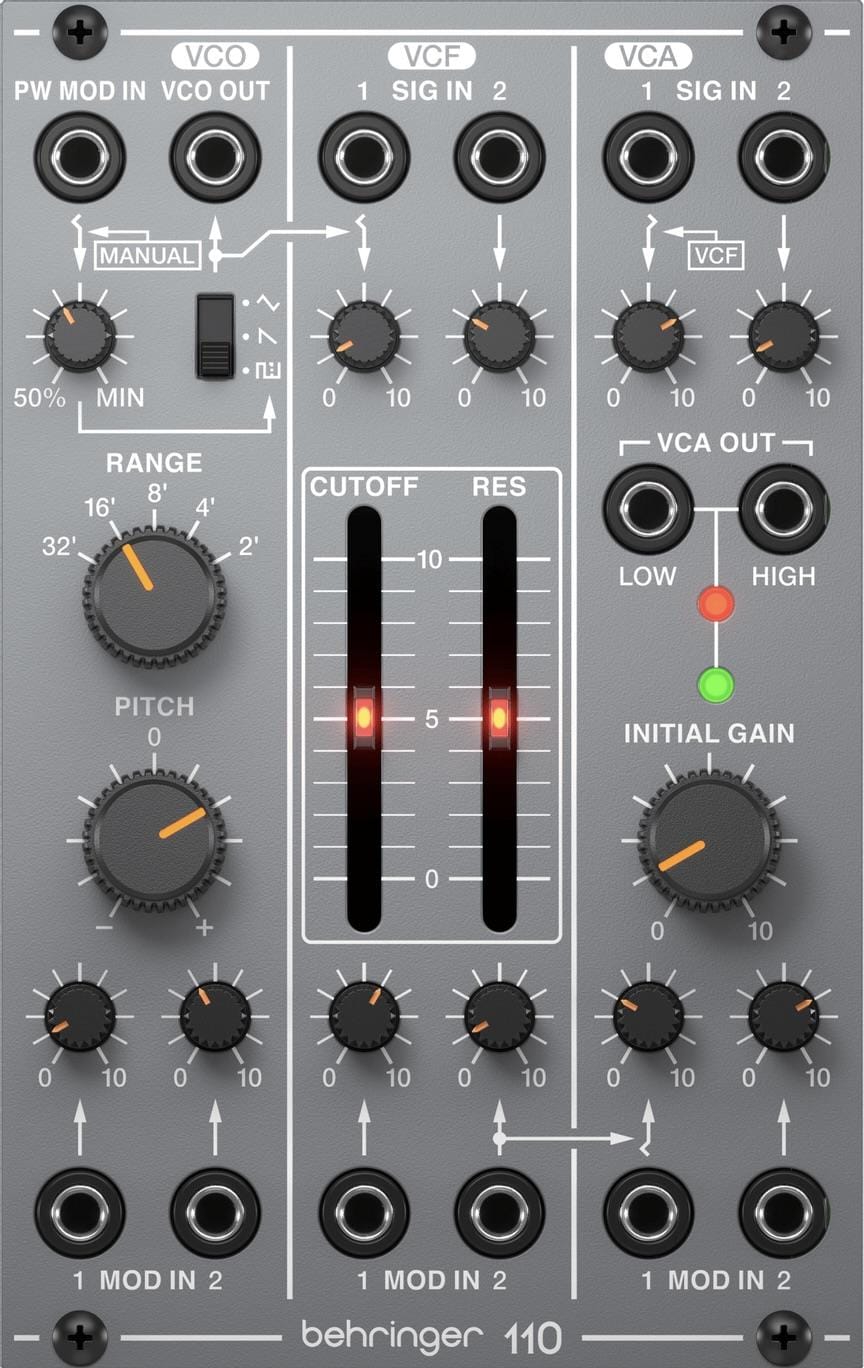

The Behringer 110 is a compact, faithful recreation of the legendary Roland System 100M 110 module from the early 1980s. It packs a complete analog synth voice—VCO, VCF, and VCA—into just 16 HP with internally normalled signal flow for instant patch-and-play fun, while still offering plenty of patch points for deeper modular experimentation. Perfect as a starter voice or utility module in any Eurorack system.
Technical Specifications
| Item | Description |
|---|---|
| Type | Legendary Analog VCO/VCF/VCA Eurorack Module (complete synth voice) |
| Eurorack Width | 16 HP |
| Depth | 46 mm |
| Weight | 0.19 kg (0.42 lbs) |
| Power Requirements | Eurorack bus (10-pin or 16-pin connector) |
| Current Draw | +12 V: 80 mA, –12 V: 50 mA, +5 V: 0 mA |
| VCO | |
| Waveforms | Triangle, Ramp (Sawtooth), Pulse (PWM) |
| PWM Control | Manual (50% to minimum) or external CV (0 V to +10 V, 4% per volt) |
| Frequency Controls | PITCH (±2 octave fine tune), RANGE (32′, 16′, 8′, 4′, 2′ octave steps) |
| CV Inputs | 2 × 3.5 mm TS (summed, 1 V/oct, 0 V to +10 V) |
| Audio Output | 1 × 3.5 mm TS, DC coupled, 1 kΩ, max 10 V p-p Frequency range (no CV): <10 Hz – 500 Hz Frequency range (with CV): <1 Hz – 30 kHz |
| VCF | |
| Type | 24 dB/octave low-pass filter |
| Controls | CUTOFF FREQ (20 Hz – 20 kHz), RESONANCE (off to self-oscillation) |
| Audio Inputs | 2 × 3.5 mm TS, AC coupled, >50 kΩ, max +17 dBu @ unity gain |
| CV Inputs | 2 × 3.5 mm TS (summed, 0 V to +10 V) |
| VCA | |
| Controls | INITIAL GAIN (–∞ to unity), SIG LEVEL (–∞ to unity), MOD LEVEL (–∞ to unity) |
| Audio Inputs | 2 × 3.5 mm TS (shared SIG IN jacks) |
| CV Inputs | 2 × 3.5 mm TS (summed, typically 1 V per 10 dB) |
| Audio Outputs | 2 × 3.5 mm TS, AC coupled • High: 1 kΩ, max +18 dBu, noise <–60 dBu • Low: 3 kΩ, max –2 dBu, noise <–80 dBu |
| Additional I/O | |
| PWM MOD Input | 1 × 3.5 mm TS, DC coupled, >70 kΩ, 0 V to +10 V |
| Signal Inputs (VCF/VCA) | 4 × 3.5 mm TS total (2 audio per section) |
| Modulation Inputs | Dedicated summed pairs for VCO, VCF, VCA |
| LEDs | Signal present (green) / Overload (red) on VCA |
Key Features & Signal Flow
- Internally patched voice – VCO → VCF → VCA is normalled, so you can start making sounds immediately with just one patch cable (or none).
- Classic System 100M tone – Rich, punchy analog sound with that unmistakable 80s character.
- Flexible patching – Break the normalisations at any point and insert other modules.
- Dual VCA outputs – High-level line out + low-level “Eurorack-friendly” out for easy integration with mixers or other gear.
- Self-oscillating filter – Turn resonance up and the VCF becomes a sine-wave oscillator for extra tones or percussion.
Resources
- Official Behringer product page: https://www.behringer.com/product.html?modelCode=0720-AAC
- Quick Start Guide (PDF): Search “Behringer 110 manual” on Behringer’s download centre
- ModularGrid page: https://modulargrid.net/e/behringer-system-100-110-vco-vcf-vca
- User manual & further patches: Available on Thomann, Sweetwater, or Andertons product pages
If you’re building your first Eurorack system or looking for an affordable, authentic-sounding analog voice, the 110 is hard to beat at its price point. Highly recommended!
